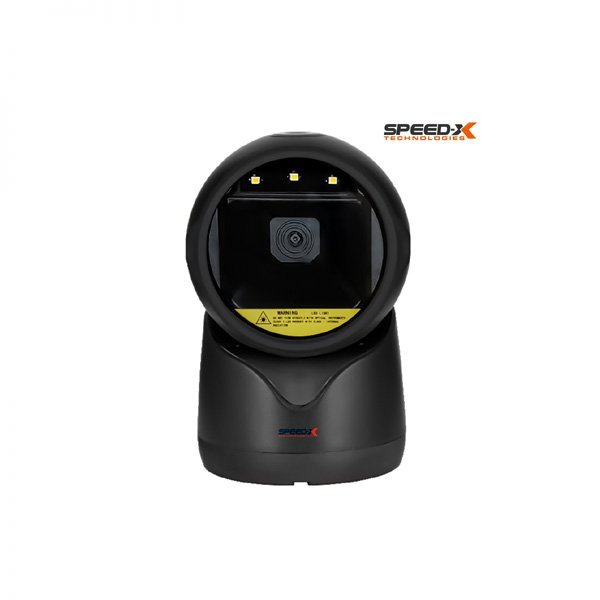

Speed-x 9500 2d Desktop Barcode Scanner
Original price was: ₨ 14,500.00.₨ 8,500.00Current price is: ₨ 8,500.00.
Description
Detail:
2D CMOS Desktop Barcode Scanner
| Technical Specifications | |
| Electrical Characteristics | |
| Interface Supported | RS-232/USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±10% |
| Current | Max:335 |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640 X 480 Pixels |
| Light Source | RED LED |
| Performance Characteristics | |
| Field of View | 39H),29V) |
| Min Resolution | 1D：0.127mm/5mil（PCS 0.9）
2D：0.254mm/10mil（PCS 0.9） |
| Min .PCS value | 〉20% UPC/EAN 13（13mil） |
| Language | Multiple Languages |
| Decode Capability | 1D：Codabar，Code 39，Code 32 , Interleaved 2 of 5，NEC 2 of 5，Code 93，Straight 2 of 5(Industrial)，Standard 2 of 5（IATA），Matrix 2 of 5，Code 11，Code 128，GS1-128，UPC-A，UPC-E，EAN-8，EAN-13，MSI Code，GS1 DataBar Expanded，GS1 DataBar Limited，GS1 DataBar Omnidirectional ，Matrix 2 of 5，Telepen
2D：PDF417, QR code，DataMatrix ，Aztec ，China Post（Hong Kong 2 of 5），Korea Post，Han Xin code，MaxiCode，MicroPDF417，GS1 Composite Code，Codablock A ，Codablock F |
| Physical Characteristics | |
| Dimensions | 100mm*94mm*152mm(L*W*H) |
| Weight | 265g |
| Indicator | Beeper, LED |
| Environmental Characteristics | |
| Temperature | 0°∽50°C (operation)
-10°∽60°C (storage) |
| Humidity | 20 – 85% (operation) ) 20 – 95% (storage) |
| Shock Drop Test | 1.5m drop onto concrete surface |
Decoding Depth of Field
| Symbology | Resolution | Nearest | Farthest |
| Code 39 | 5mil | 0cm | 9cm |
| Code 39 | 13mil | 0cm | 17.5cm |
| UPC-A | 3.34mil | 1cm | 17cm |
| QR | 20mil | 0cm | 13cm |
| QR | 30mil | 0cm | 18cm |
| Pay Code（QR 3*3cm） | – | 1cm | 32cm |
| Pay Code（QR 2.3*2.3cm） | – | 0cm | 28cm |
