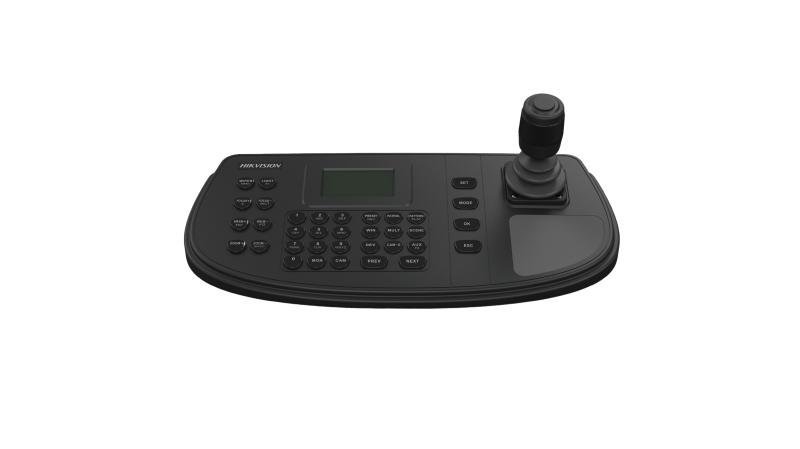

DS-1200KI
Network Keyboard
- Full-featured network keyboard
- Supports various cameras, NVRs, DVRs
- Flexible 4-axis joystick
- Buttons can be used to perform powerful functions
- 128 x 64 screen displays all important information
Description
- Interface
- USB Interface1 × USB 2.0
- Serial Interface1 RS-232, 1 RS-422, 1 RS-485
- Network Interface1 x 10 M/100 Mbps self-adaptive Ethernet interface
- General
- Working Temperature-10 to +55° C (14 to 131° F)
- Working Humidity10% to 90%
- Net Weight≤ 1 kg (2.2 lb)
- Dimensions (W × H × D)435 × 110 × 193 mm (17.1 × 4.3 × 7.6 inch)
- Power Consumption≤ 4.5W
- Power Supply12 VDC
- Display128 x 64 pixel screen
- Joystick4-axis joystick
- Certification
- Obtained CertificationCE-EMC/CE-LVD/ROHS/CB/UL/FCC-SDoC/BIS
Reviews (0)
Additional Information
Related products
DS-K1A340FWX
Value Series Face Access Terminal
- Local time attendance; Remote configuration via web browser
- 4.3-inch touch screen and 2 MP camera
- Face anti-spoofing; Face recognition distance: 0.3m to 1.5m
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Deep learning algorithm
- 1500 face capacity, 3000 fingerprint capacity, and 300,000 attendance records
- Supports ISAPI, ISUP5.0
- Export registered face pictures and events from device via USB interface
- Manage, search and set device data after logging in the device locally
DS-K1T320MFWX-B
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
- Supports M1 card
- Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the web client
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
DS-K1T321MFWX
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
- Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the PC web client and mobile web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
DS-K1T331W
Value Series Face Access Terminal
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face Recognition Access Control Terminal, 3.97-inch LCD touch screen,2 Mega pixel wide-angle lens
- Max.1000 faces capacity
- Configuration via the web client
- Supports TCP/IP,Wi-Fi communication
- Supports ISUP5.0, ISAPI
DS-K1T341CMFW
Value Series Face Access Terminal
- Deep learning algorithm
- 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
- 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
- Multiple authentication modes, including face, fingerprint and card, etc.
- Face recognition duration < 0.2 s/User
- Supports mask wearing detection
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, door station, indoor station, and main station
DS-K1T342EFWX
Value Series Face Access Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in EM card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%
- Supports mask recognition
DS-K1T343MFWX
Value Series Face Access Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Duration < 0.2 s/User
- Accuracy rate ≥ 99%
