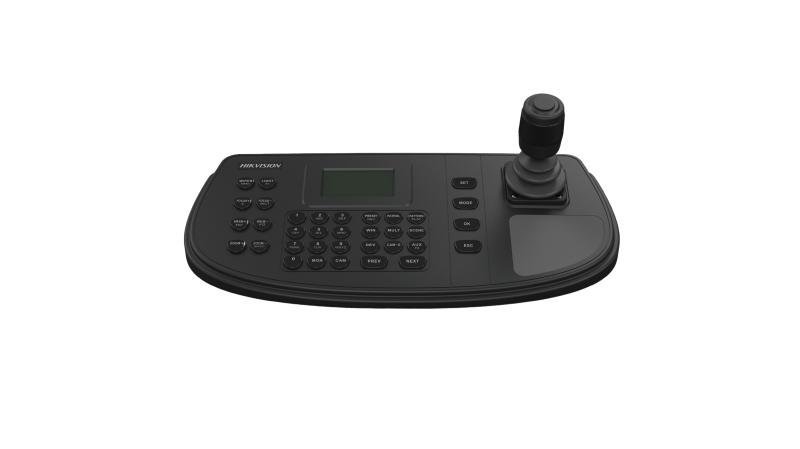

DS-1200KI
Network Keyboard
- Full-featured network keyboard
- Supports various cameras, NVRs, DVRs
- Flexible 4-axis joystick
- Buttons can be used to perform powerful functions
- 128 x 64 screen displays all important information
Description
- Interface
- USB Interface1 Ă— USB 2.0
- Serial Interface1 RS-232, 1 RS-422, 1 RS-485
- Network Interface1 x 10 M/100 Mbps self-adaptive Ethernet interface
- General
- Working Temperature-10 to +55° C (14 to 131° F)
- Working Humidity10% to 90%
- Net Weight≤ 1 kg (2.2 lb)
- Dimensions (W Ă— H Ă— D)435 Ă— 110 Ă— 193 mm (17.1 Ă— 4.3 Ă— 7.6 inch)
- Power Consumption≤ 4.5W
- Power Supply12 VDC
- Display128 x 64 pixel screen
- Joystick4-axis joystick
- Certification
- Obtained CertificationCE-EMC/CE-LVD/ROHS/CB/UL/FCC-SDoC/BIS
